An industrial burner is a component that mixes fuel and air to generate efficient and safe combustion
What is an Industrial Burner and why is it so important?
An industrial burner is a component that mixes fuel and air in the correct proportions to generate efficient and safe combustion. Its main purpose is to transform the chemical energy of the fuel into thermal energy by producing a stable flame that can be used to heat fluids, generate steam, or reach the temperatures required by the process.
The importance of its functionality is based on the following points:
Continuity in production processes: In most industrial processes, heat generation is essential. Therefore, a reliable burner ensures production stability and helps prevent unscheduled downtime.
Improved energy efficiency: By design, a good burner must provide the proper air-fuel ratio, allowing the fuel to be used efficiently while also helping avoid operational overcosts.
Emission reduction: Burners can help companies comply with environmental regulations by providing efficient combustion that reduces the generation of pollutants such as CO and NOx.
Precise temperature control: In certain industries, product quality depends on specific thermal conditions. An industrial burner provides stability and precision in heat generation.
What is a Conventional Burner?
Conventional burners generate a flame whose energy is concentrated in the area near the burner. Heat is transferred through radiation and natural convection, which can create temperature differences inside the furnace.
Therefore, a conventional burner generates less gas movement, increasing the possibility of hot and cold spots inside the furnace. It can be suitable for processes that do not require high thermal uniformity, since these systems usually require a lower initial investment.
These burners are still an alternative for processes where thermal uniformity, rapid heating, or fuel savings are not critical requirements. They are commonly used in general heating processes, unlike high-velocity burners, which are more frequently used in forging, glass, ceramics, and heat treatment applications, where thermal precision is a key factor for successful operation.

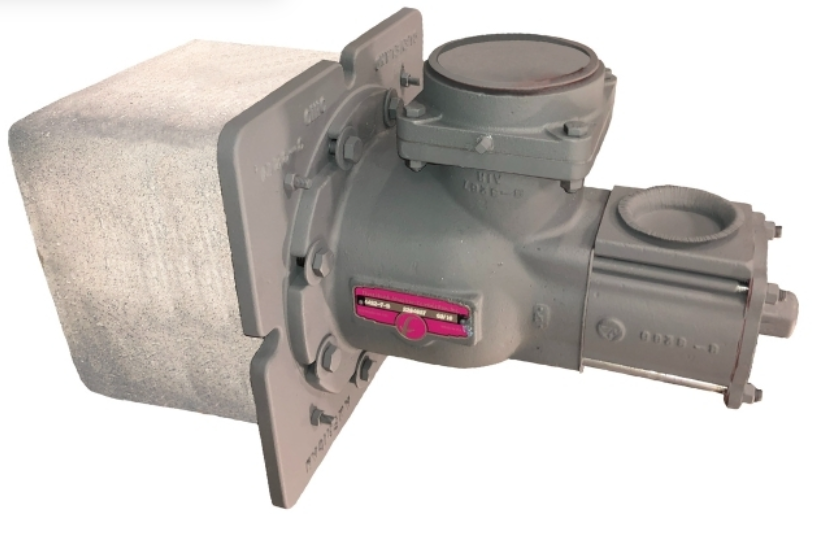

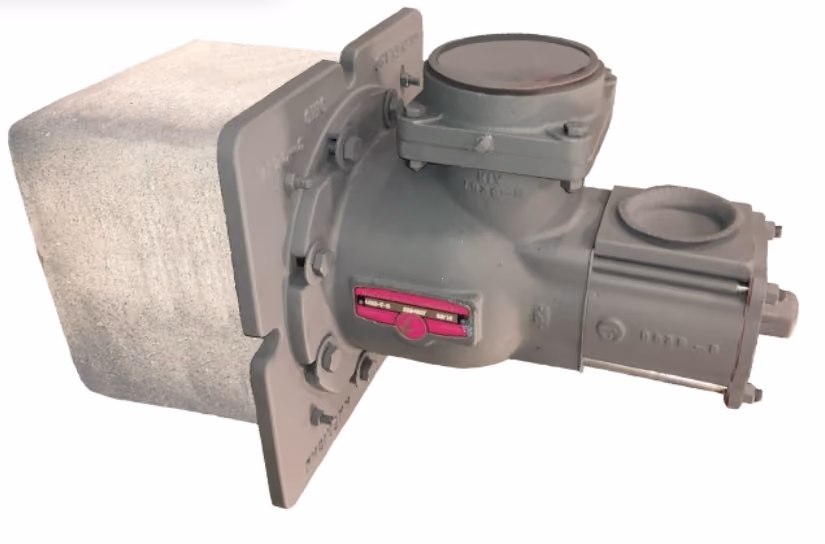

North American Fire-All™ 4422
What is High-Speed Burner?
High-velocity burners are equipment designed to generate a flame at high velocity, significantly improving heat transfer and the circulation of hot gases inside the furnace.
They are a widely used solution in heating processes where thermal efficiency and temperature uniformity are key to ensuring product quality and optimizing energy consumption. Some industries where they are highly used include metallurgy, ceramics, automotive, food processing, and heat treatment. These are applications where fast, uniform, and controlled heating is required.
Their main characteristics include:
High discharge velocity: It can exceed the gas velocity of a conventional burner several times, generating intense turbulence inside the furnace.
Improved temperature uniformity: Due to the recirculation of hot gases, cold spots and overheating zones are reduced, providing a more homogeneous heat distribution.
High energy efficiency: They generate efficient heat distribution, helping reduce fuel consumption and improve overall system performance.
Faster heating: Process times are reduced by making better use of the energy generated through combustion.
Their functionality consists of accelerating the fuel-air mixture through a specific nozzle and combustion chamber design. When ignited, the flame generates a jet of hot gases that is discharged at high velocity inside the furnace, causing:
Hot air recirculation
Uniform heat distribution
Continuous mixing of flue gases
The final result is a more uniform temperature inside the furnace and more efficient use of heat.

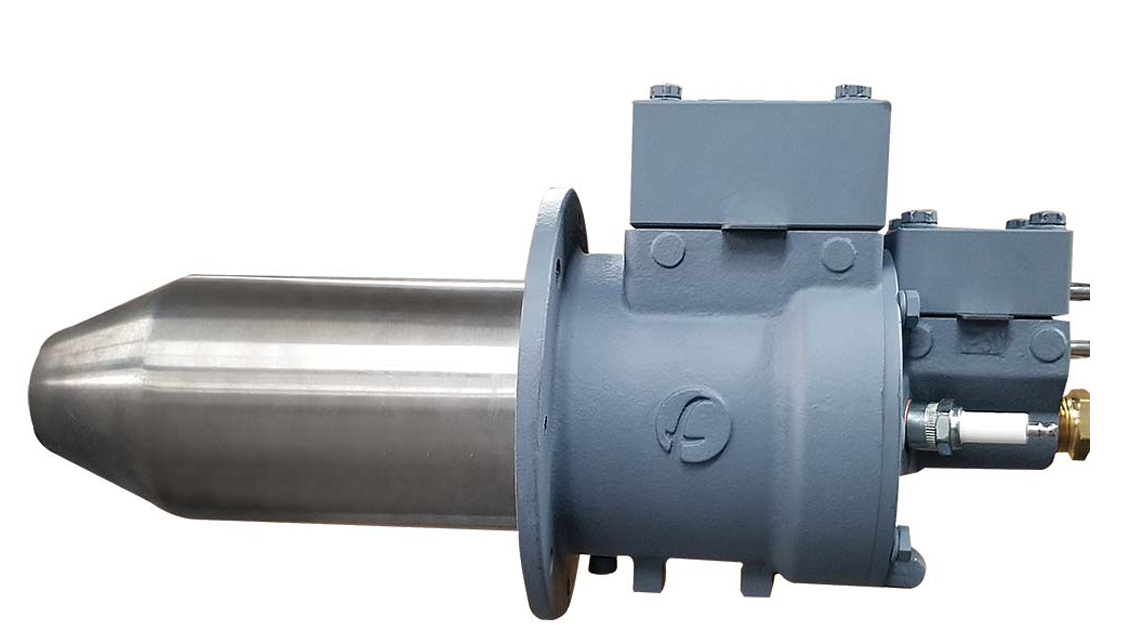

North American Tempest® High Velocity Burner
Discover the Tempest Fives North American Burners
The Tempest burners from Fives North American are high-velocity industrial burners designed to deliver efficient combustion with low emissions. Selecting Tempest burners for your operation can represent a solution that combines advanced combustion engineering with robust operational performance. As a result, they become a strategic investment for equipment modernization.
If you'd like more information, contact us here, and a specialist will get in touch with you.
