±5°C

Temperature uniformity achieved

~15%

Estimated gas reduction
per cycle

↓

Rework eliminated quality improved

100%

Stress-relieving curve stabilized

Executive Summary

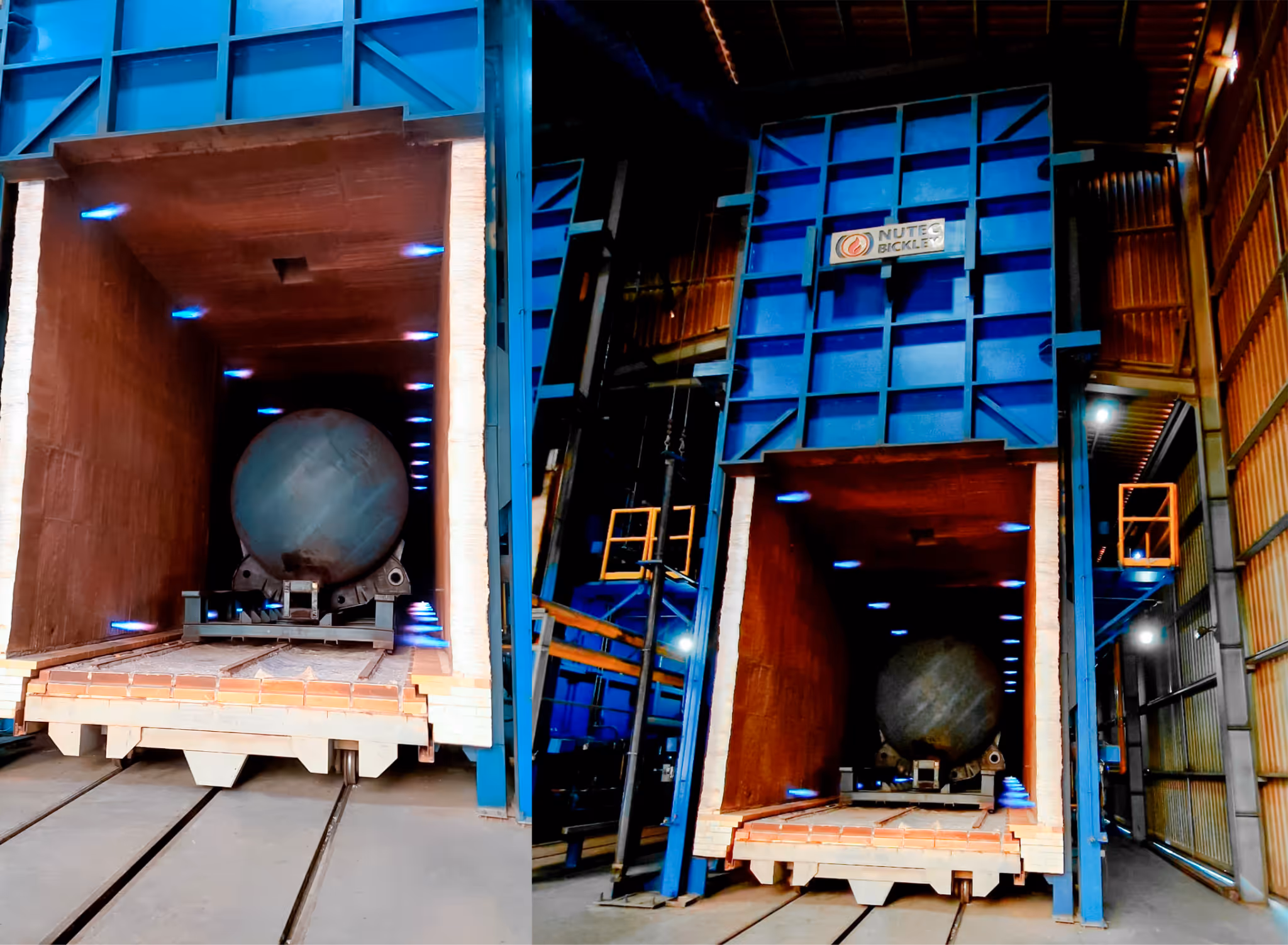

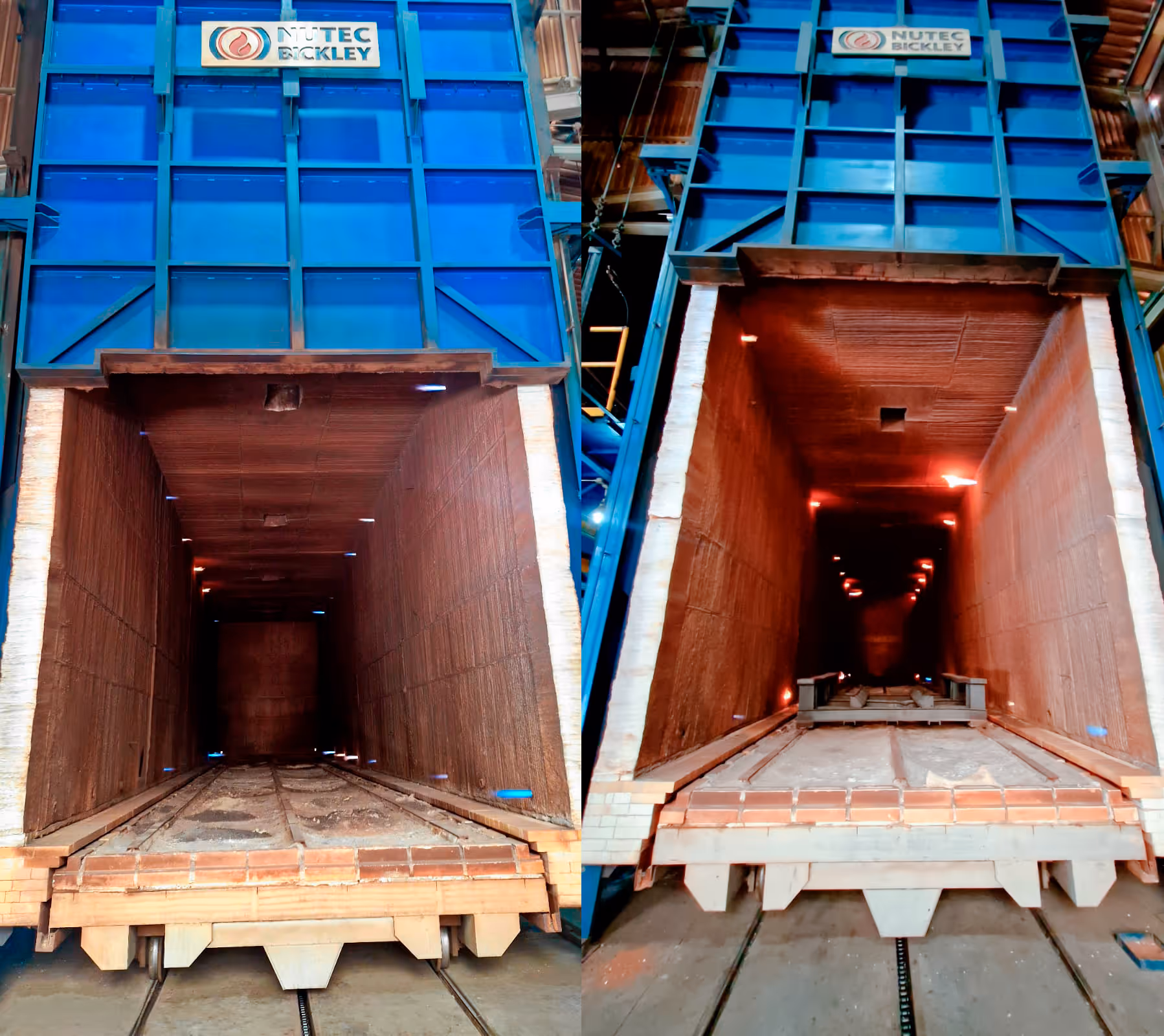

A railway metalworking manufacturer in Mexico was experiencing unacceptable temperature variation and excessive natural gas consumption in its gas-fired stress-relieving furnace. Inconsistent temperature distribution across the furnace chamber was generating costly rework and creating a risk of non-compliance with the process specifications required for certified heat treatment.

The NUTEC BICKLEY technical services team deployed its comprehensive preventive maintenance program: combustion system diagnostics, burner rehabilitation and calibration, critical component replacement, PID control loop tuning, and internal pressure control adjustment. From the very first service visit, the furnace achieved ±5°C temperature uniformity and an estimated 15% reduction in natural gas consumption per cycle under comparable operating conditions — translating directly into higher product quality, lower operating costs, and a fully controlled stress-relieving process.

The Challenge: What Was at Stake

Without a structured maintenance program, industrial furnaces in active production gradually accumulate combustion inefficiencies that go undetected — until they become costly unplanned shutdowns. This stress-relieving furnace exhibited the classic pattern of deferred maintenance:

Thermal inconsistencies — creating the risk of out-of-specification parts and driving up the cost of rework.
Elevated natural gas consumption — combustion system components showing operational wear and drift, running well outside optimal flow and pressure parameters.
Limited temperature distribution control — the furnace lacked the precision needed to execute certified stress-relieving profiles consistently.
Process non-compliance risk — the inability to document and validate temperature uniformity exposed the operation to quality audit failures.
Accelerated equipment deterioration — operating outside optimal parameters accelerates wear on insulation, motors, valves, burners, thermocouples, and control systems.

Each of these issues carries a direct financial impact: rework costs, excess labor, fuel overrun, and the risk of production shutdowns. For manufacturers that rely on stress relieving as a core quality process, thermal instability is not an operational inconvenience — it is a liability.

‍

The NUTEC BICKLEY Solution: What a Stress-Relieving Furnace Preventive Maintenance Program Includes

NUTEC BICKLEY deployed its structured preventive maintenance program for industrial furnaces, led by specialized field service engineers. As the original equipment manufacturer (OEM), NUTEC BICKLEY performs every service with direct knowledge of the original design, combustion system architecture, and technical specifications of the equipment:

Phase 1 — Technical Diagnostics

A comprehensive technical assessment of the combustion system, control architecture, and overall furnace condition. This phase identified all areas of opportunity and established the baseline for measurable improvement.

Phase 2 — Critical Component Recommendations

Based on the diagnostic findings, NUTEC BICKLEY identified, recommended, and sourced the specific components requiring replacement — ensuring availability before beginning the intervention to minimize downtime.

Phase 3 — Intervention Planning

A structured, scheduled maintenance plan was developed to minimize production impact while maximizing the effectiveness of the intervention.

Phase 4 — Preventive Maintenance Execution

Execution covered all major subsystems of the stress-relieving furnace:

General system cleaning: filters, spark igniters, and combustion components.
Safety testing: operational safety review in accordance with NFPA 86.
Critical component replacement: parts identified during the diagnostic phase.
Burner calibration: precise adjustment of the air-to-gas ratio for optimal combustion, including PID loop tuning.
Internal pressure control calibration: chamber pressure stabilization for uniform temperature distribution and fuel savings.
Heating and cooling curve monitoring: verification that the furnace executes the correct stress-relieving profile throughout the full thermal cycle.

Phase 5 — Validation and Handover

A complete activity report documenting every action performed, before-and-after measurements, and a formal handover confirming that the furnace meets its performance specifications.

‍

Results: Measurable Impact from the First Visit

Industrial furnace maintenance delivers results that are immediately reflected in production, quality, and maintenance KPIs. Following NUTEC BICKLEY's preventive maintenance and burner calibration program, the client recorded:

Metric	Before service	After NUTEC Bickley Service
Temperature Uniformity	Inconsistent temperature variation (uncontrolled variance)	Stable, controlled temperature of ±5°C throughout the furnace — responding correctly to setpoint demand
Natural Gas Consumption	High and uncontrolled; combustion imbalance across burners (unoptimized baseline)	Estimated ~15% reduction per cycle through burner calibration and internal pressure control adjustments
Rework	Elevated — direct impact on productivity	Measurable reduction from the first service visit
Stress-Relieving Curve Stability	Unstable — irregular thermal profile	Stable, controlled, and fully documented
Combustion System Condition	Components showing operational wear and drift; control loop parameters out of spec	Fully calibrated system; optimal air-to-gas ratio; PID control loops tuned

‍

Why Industrial Furnace Operators Choose NUTEC BICKLEY

NUTEC BICKLEY is not a generic maintenance contractor. With over 50 years designing and manufacturing industrial furnaces across the Americas, Europe, and Asia, NUTEC BICKLEY brings engineering depth to every service visit.

OEM Advantage — As the furnace manufacturer, NUTEC BICKLEY engineers work from original design and technical documentation. No assumptions. No generic adjustments.
NFPA 86 Compliance — Every maintenance program is aligned with NFPA 86 safety standards, protecting the operation from regulatory risk and potential shutdowns.
Measurable results from visit one — Diagnostics, calibration, and a formal report delivered during the initial visit.
Scheduled service visits — Maintenance plans tailored to your operation, with pre-established visit dates to anchor your maintenance calendar.
Full traceability — Clear, structured reports ready for audits or management presentations after every intervention.
Energy optimization — Combustion calibration typically generates measurable fuel savings from the first service.
Single partner for the full equipment lifecycle — Engineering, supply, installation, commissioning, and maintenance — all under one roof.
Coverage across Mexico — A field engineering team distributed across strategic locations throughout the country.

‍
